      Connect the Wifx L1 with Lora Basics™ Station

      Updated 20 January 2025 Edit on GitHub
      Copy page
      • View as MarkdownThis page as plain text
      • Open in ChatGPTAsk questions about this page
      • Open in ClaudeAsk questions about this page

      This section contains instructions for connecting the Wifx L1 gateway to The Things Stack using LoRa Basics™ Station.

      Enable the Basic Station

      Go to the LoRa > Forwarder page.

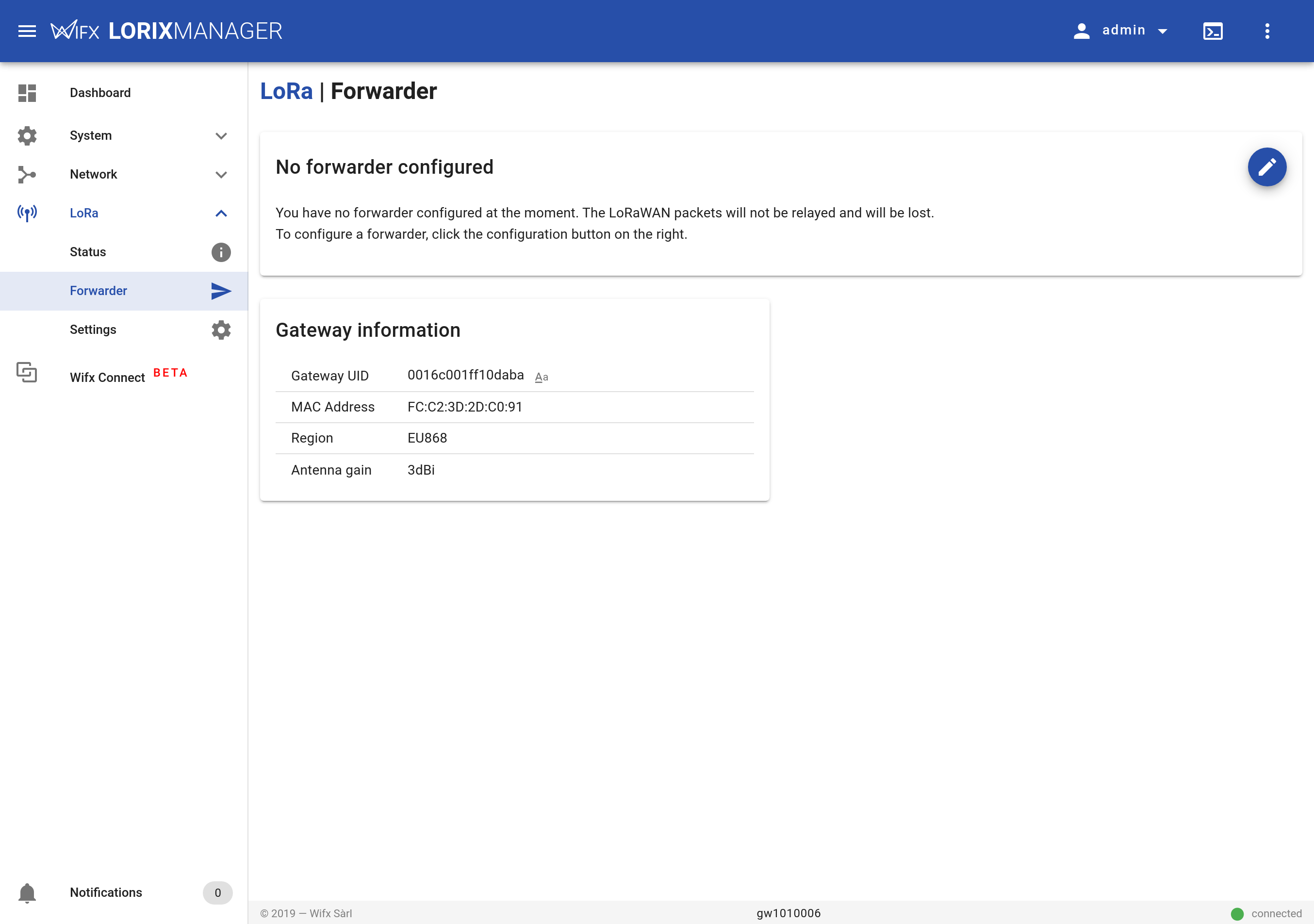

      Wifx L1 LoRa forwarder page

      On the top right, click the Edit button to choose a forwarder.

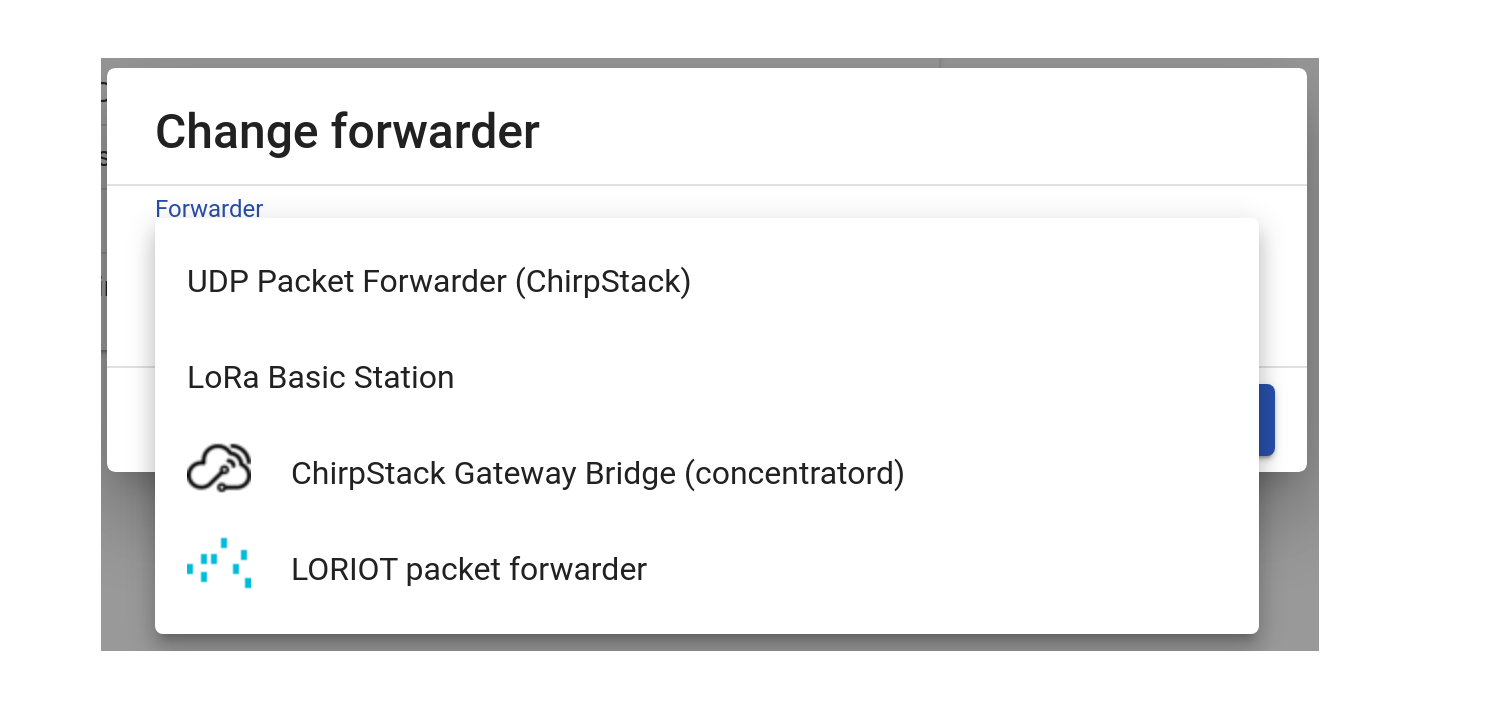

      Wifx L1 LoRa forwarder selection

      In the list, select LoRa Basic Station and press Apply.

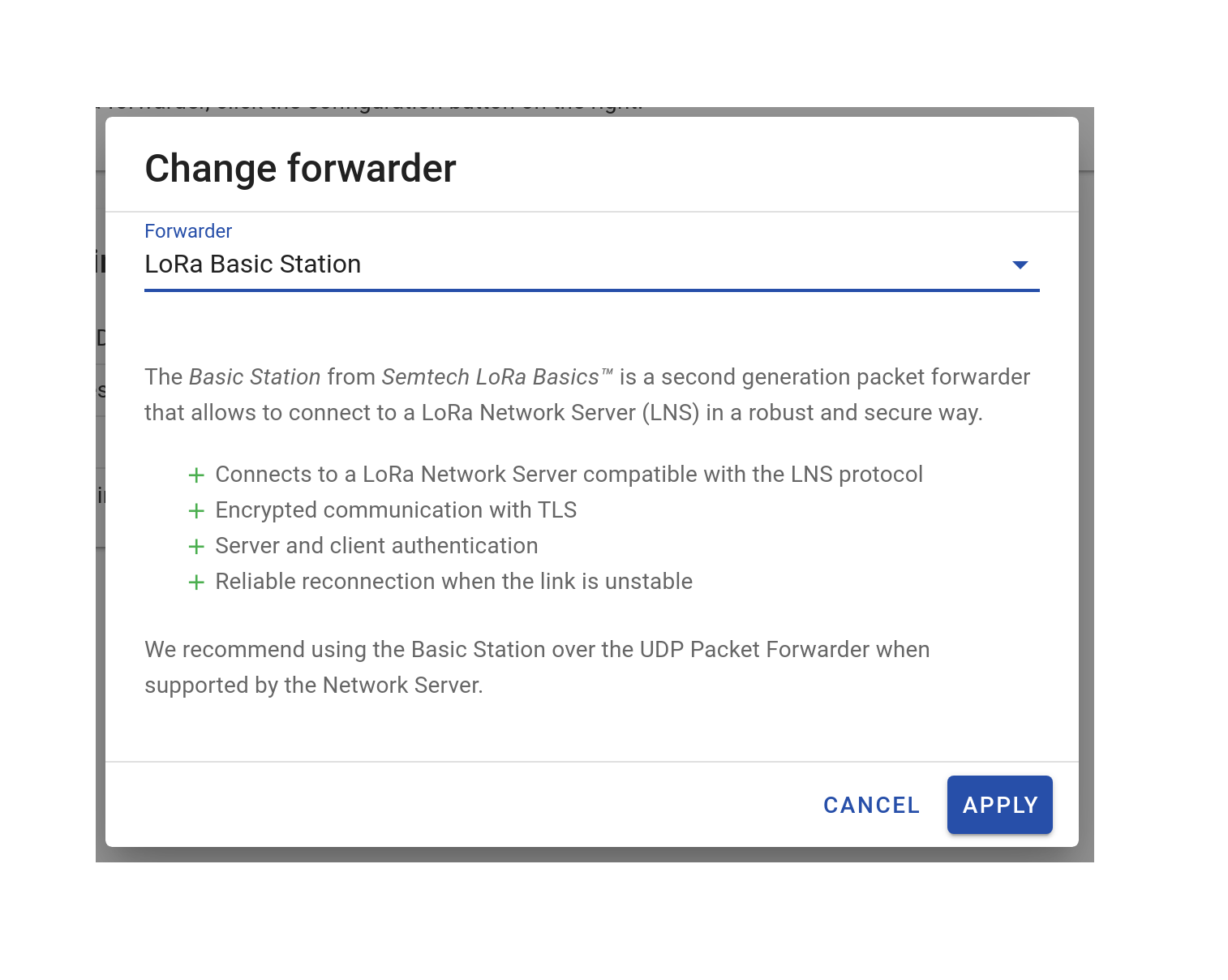

      Wifx L1 LoRa forwarder Basic Station selection

      Configure the LNS

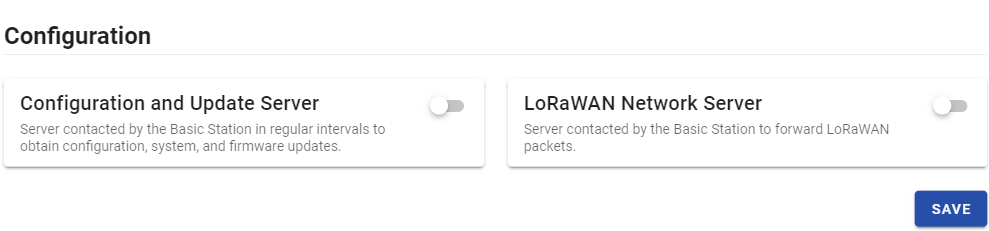

      Scroll down to the Configuration section and enable the LoRaWAN Network Server option.

      Wifx L1 LoRa forwarder Basic Station LNS

      Configure the Address with the Server Address of your deployment, and Port with LNS port 8887.

      Enable the Secured TLS connection and select the Use local root certificates option. If you need to use a certificate specific to your infrastructure (for on-premise installations), use the Use certificate file option instead and upload the certificate.

      Enable the Client authentication, select Use token, and set the previously saved API key in the Authentication token field. This key was shown to you as you created it when registering the gateway. If you did not copy the key, you can delete it and create a new one.

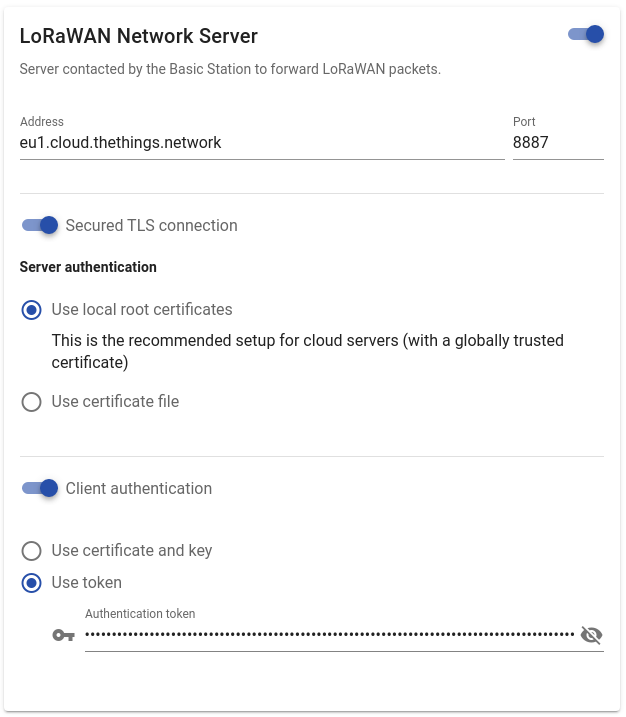

      Wifx L1 LoRa forwarder Basic Station LNS

      Press the SAVE button. In the Control pane above, press START and check the logs in the dedicated pane.

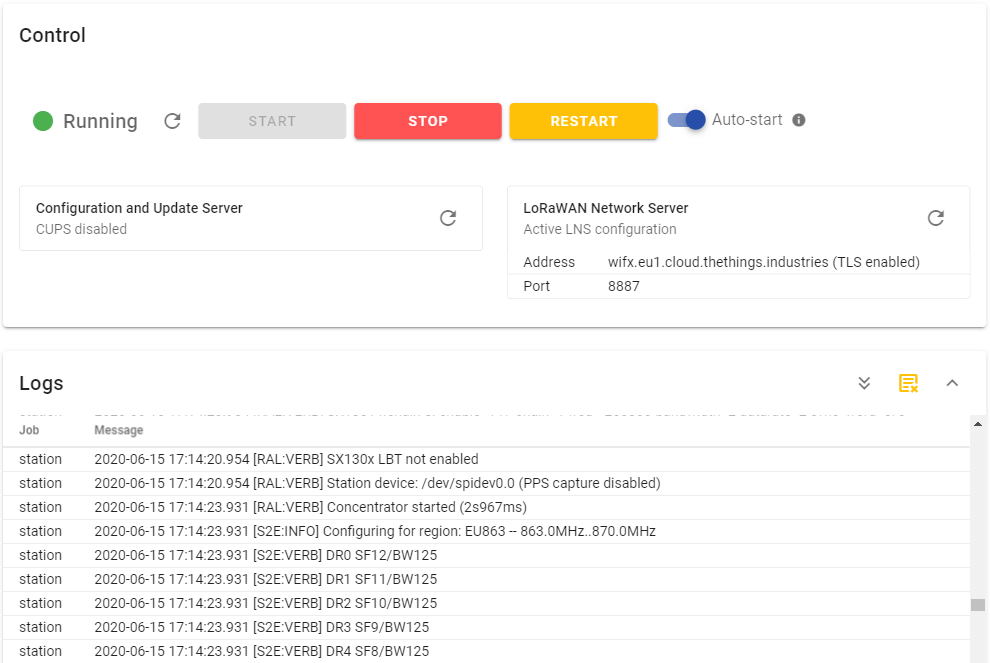

      Wifx L1 LoRa forwarder Basic Station start

      You should see a bunch of messages, one of which indicates success :

      [TCE:INFO] Infos: fcc2:3dff:feab:cdef muxs-::0 wss://wifx.eu1.cloud.thethings.industries:8887/traffic/eui-FCC23DFFFEABCDEF


      If the connection fails, you will get this kind of message:

      [AIO:ERRO] [-1] WS connect failed: NET - Failed to get an IP address for the given hostname
      [TCE:ERRO] TC connect failed - URI: wss://wrong-tenant.eu1.cloud.thethings.industries:8887


      Please check the configuration and the LoRa Network Server status. After a configuration change, always restart the Basic Station with the Restart button to make it effective.

      If the Basic Station crashes for any reason, it will be automatically restarted if the Auto-start option is enabled.

      CUPS

      Go to the Configuration section and enable Configuration and Update Server.

      Wifx L1 LoRa forwarder Basic Station LNS

      To connect the gateway via CUPS protocol, follow the instructions for Connecting CUPS.

      Press the SAVE button. In the Control pane above, press START and check the logs in the dedicated pane.
