Monitoring Temperature with MKR WAN 1310

In this section we present an example project where we show how to connect a temperature and humidity sensor to the MKR WAN 1310 device to send the data to The Things Stack and decode it.

The sensor we are going to be using is a DHT11, which is a Temperature and Humidity sensor. For more information on how the sensor works and how the module you are using might differ in wiring, check this guide.

Building the Circuit

For this project you are going to be needing:

• DHT11 sensor
• Some jumper wires
• Breadboard

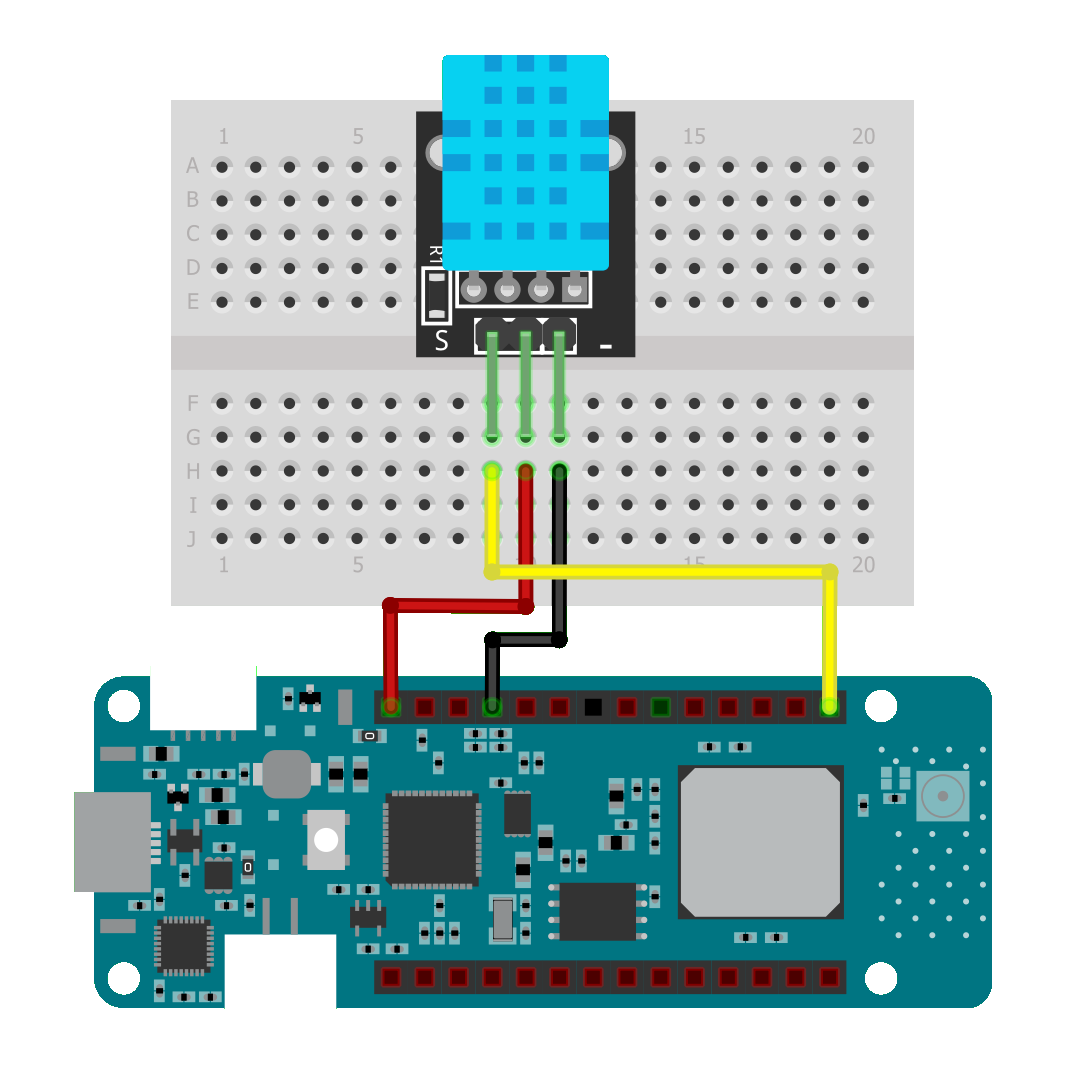

Once you have the components, wire it up like shown on the image on the right:

• Arduino 5V -> Plus DHT11
• Arduino GND -> Minus DHT11
• Arduino Pin 6 -> Signal DHT11

Programming the MKR 1310

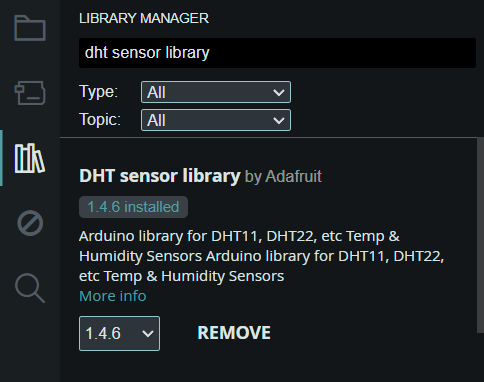

Before we continue, you need to make sure you have the DHT sensor library by Adafruit installed in the Arduino IDE:

Next is the code itself. You can find it below, but you do have to change a few things. Check the in-code comments for which those are.

#include <MKRWAN.h>
#include <DHT.h>

LoRaModem modem(Serial1);

String appEui = ""; // Add your own AppEUI here
String appKey = ""; // Add your own AppKey here

DHT dht(6, DHT11);

void setup() {
  Serial.begin(115200);
  while (!Serial);
  // change this to your regional band (eg. US915, AS923, ...)
  if (!modem.begin(EU868)) {
    Serial.println("Failed to start module");
    while (1) {}
  };

  dht.begin();

  int connected = modem.joinOTAA(appEui, appKey);
  if (!connected) {
    Serial.println("Something went wrong; are you indoor? Move near a window and retry");
    while (1) {}
  }
}

void loop() {
  int t = dht.readTemperature() * 100;
  int h = dht.readHumidity() * 100;

  byte payload[4];
  payload[0] = highByte(t);
  payload[1] = lowByte(t);
  payload[2] = highByte(h);
  payload[3] = lowByte(h);

  Serial.println("Temperature: ");
  Serial.println(dht.readTemperature());
  Serial.println("Humidity: ");
  Serial.println(dht.readHumidity());

  modem.beginPacket();
  modem.write(payload, sizeof(payload));
  modem.endPacket(true);
  delay(100000);
}

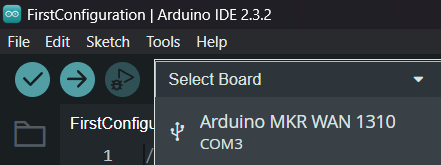

Now the code needs to be uploaded to the MKR WAN 1310. First plug the Arduino into your computer. In the IDE, click on Select Board at the top, and select your Arduino MKR WAN 1310.

Once that is done you can upload the file to the board (Using the -> button). Once the code is uploaded successfully, open the Serial Monitor. You can open it by clicking the icon in the top-right corner.

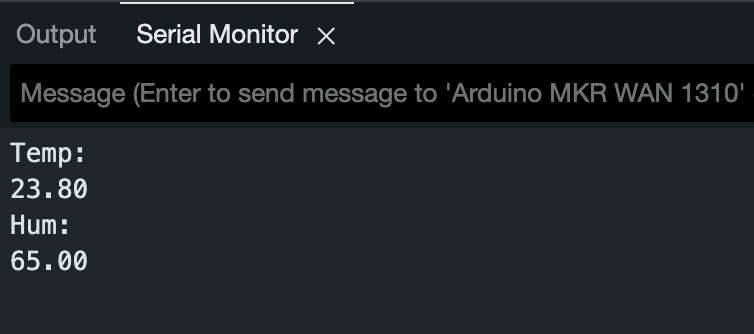

Temperature and humidity values should be listed in the Serial Monitor.

Decoding Temperature and Humidity data

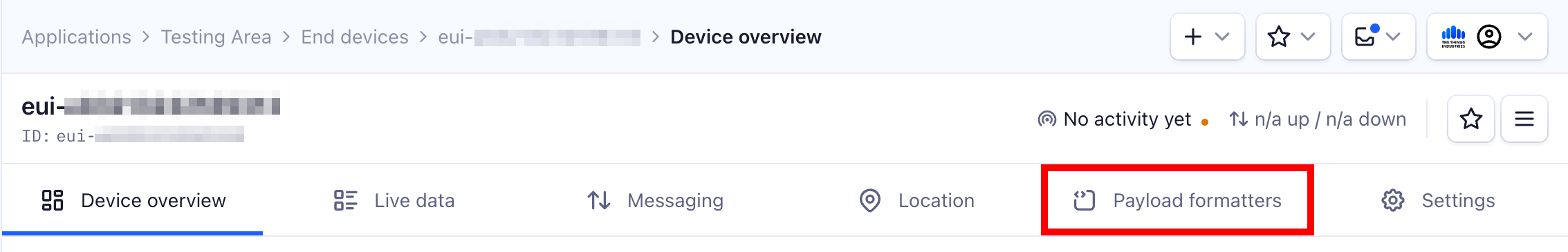

Now that the device is working go back to The Things Stack and set up the payload formatter. A payload formatter will turn the hexadecimal string received into readable text. To do this, in your application on The Things Stack, click on Payload formatters.

Select the Custom Javascript formatter from the Formatter type dropdown.

Now paste the following code in the Formatter code field:

function decodeUplink(input) {
  // Read the temperature and humidity from the payload
  var t = (input.bytes[0] << 8 | input.bytes[1]) / 100;
  var h = (input.bytes[2] << 8 | input.bytes[3]) / 100;

  return {
    data: {
      temperature: t,
      humidity: h
    }
  };
}

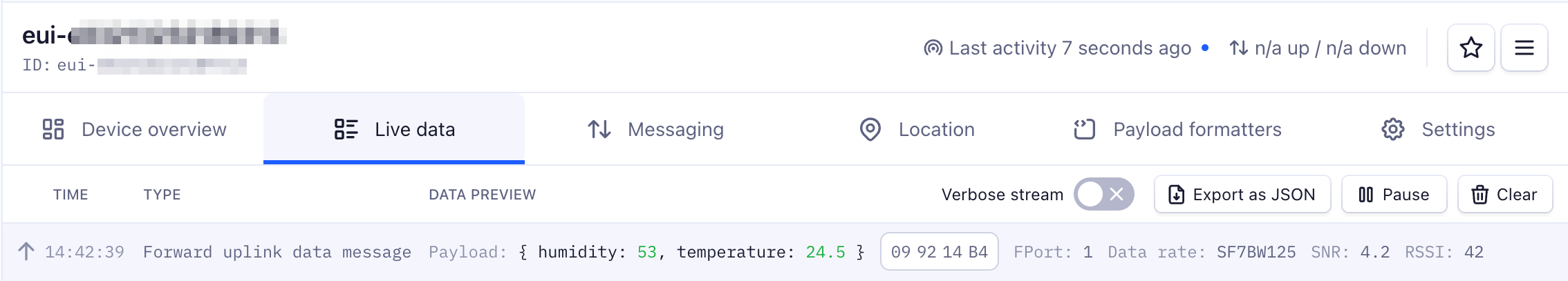

If you go back to the Live Data tab you’ll see the readable temperature and humidity values showing up!

This concludes our example project. Now you can proceed with creating your own project! Make sure to check our integrations that can help you visualize your data, set up monitoring and alerting, etc.
