Routing Policies

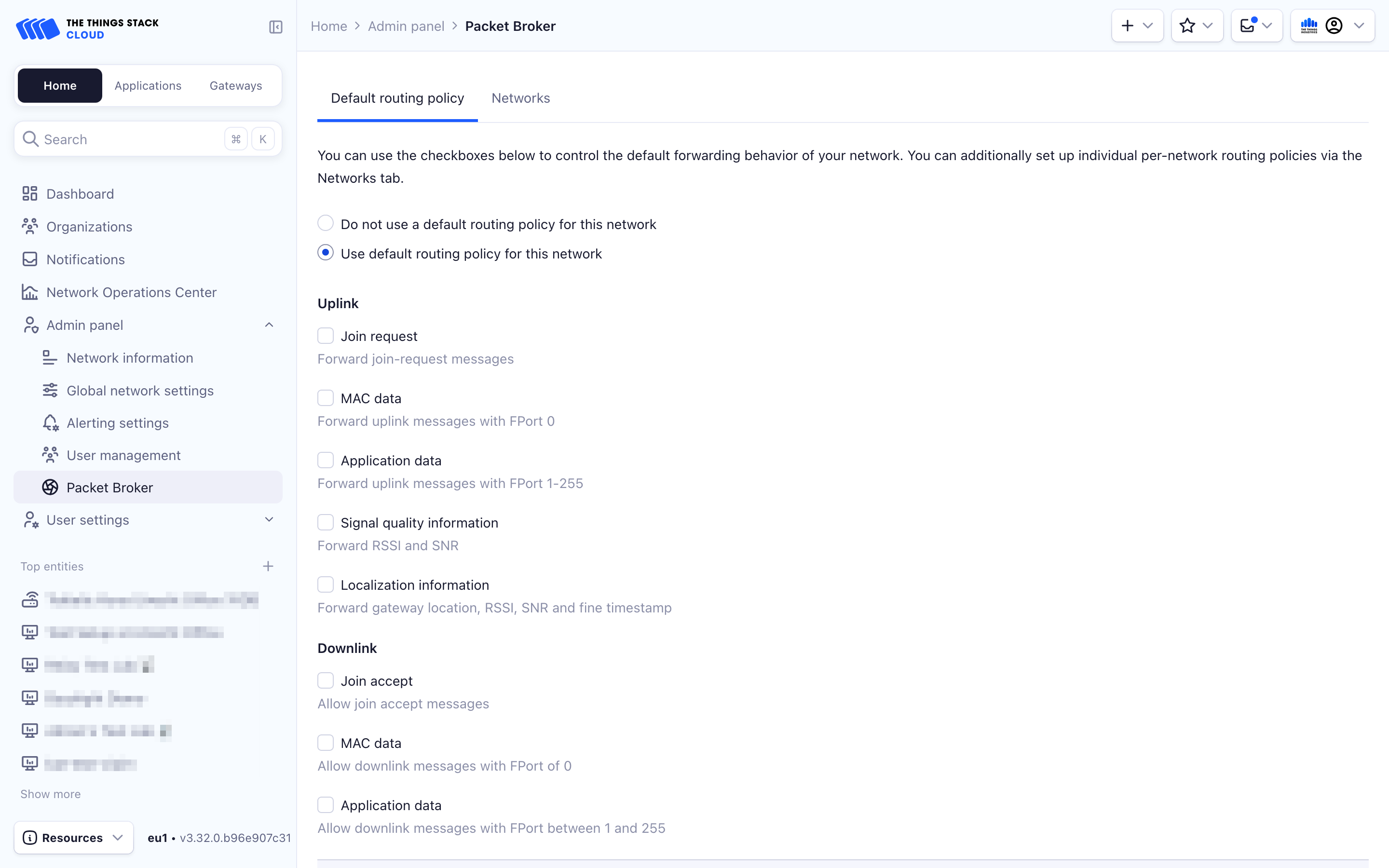

To configure a default routing policy, check the Use default routing policy for this network radio button in the Default routing policy tab. This routing policy will be used when no specific routing policy has been configured with a network.

Choose which uplink and downlink messages you would like to exchange with other networks by default, by enabling the appropriate checkboxes.

The default routing policy defines rules for all Home Networks if there is no specific routing policy for a Home Network.

Get Default Routing Policy

To get the default routing policy:

ttn-lw-cli packetbroker home-networks policies get default

If there is no default policy defined, the above command fails with not found.

{
  "updated_at": "2021-03-24T19:59:48.590521Z",
  "uplink": {
    "join_request": true,
    "mac_data": true,
    "application_data": true,
    "signal_quality": true,
    "localization": true
  },
  "downlink": {
    "join_accept": true,
    "mac_data": true,
    "application_data": true
  }
}

Set Default Routing Policy

To set the default routing policy to forward all uplink traffic and allow Home Networks to forward all downlink traffic:

ttn-lw-cli packetbroker home-networks policies set default --all

To customize, see Flags below.

Delete Default Routing Policy

To delete the default routing policy:

ttn-lw-cli packetbroker home-networks policies delete default

List Home Networks

In order to configure routing policies with Home Networks, you need to know which Home Networks are available in Packet Broker.

To list Packet Broker Home Networks:

ttn-lw-cli packetbroker home-networks list

This shows only the Home Networks that have been set to be visible to other networks.

[
  {
    "id": {
      "net_id": 19,
      "tenant_id": "ttn"
    },
    "name": "The Things Stack Sandbox",
    "dev_addr_blocks": [
      {
        "dev_addr_prefix": {
          "dev_addr": "260B0000",
          "length": 16
        },
        "home_network_cluster_id": "ttn-eu1"
      },
      {
        "dev_addr_prefix": {
          "dev_addr": "260C0000",
          "length": 16
        },
        "home_network_cluster_id": "ttn-nam1"
      },
      {
        "dev_addr_prefix": {
          "dev_addr": "260D0000",
          "length": 16
        },
        "home_network_cluster_id": "ttn-au1"
      }
    ],
    "contact_info": [
      {
        "contact_type": "CONTACT_TYPE_TECHNICAL",
        "contact_method": "CONTACT_METHOD_EMAIL",
        "value": "ops@thethingsnetwork.org"
      }
    ]
  },
  {
    "id": {
      "net_id": 8
    },
    "name": "KPN",
    "dev_addr_blocks": [
      {
        "dev_addr_prefix": {
          "dev_addr": "10000000",
          "length": 7
        }
      }
    ]
  }
]

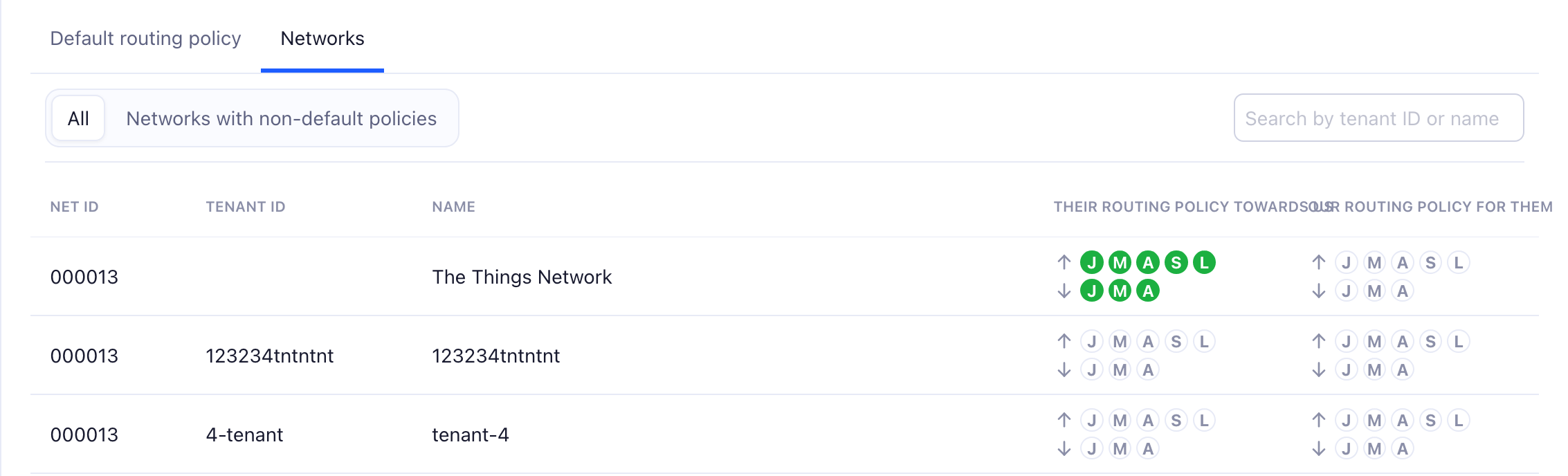

To configure a routing policy with a specific network, navigate to the Networks tab.

All networks that are publicly listed will be shown when the All tab is activated. To list only networks with a configured policy, click the Networks with non-default policies tab.

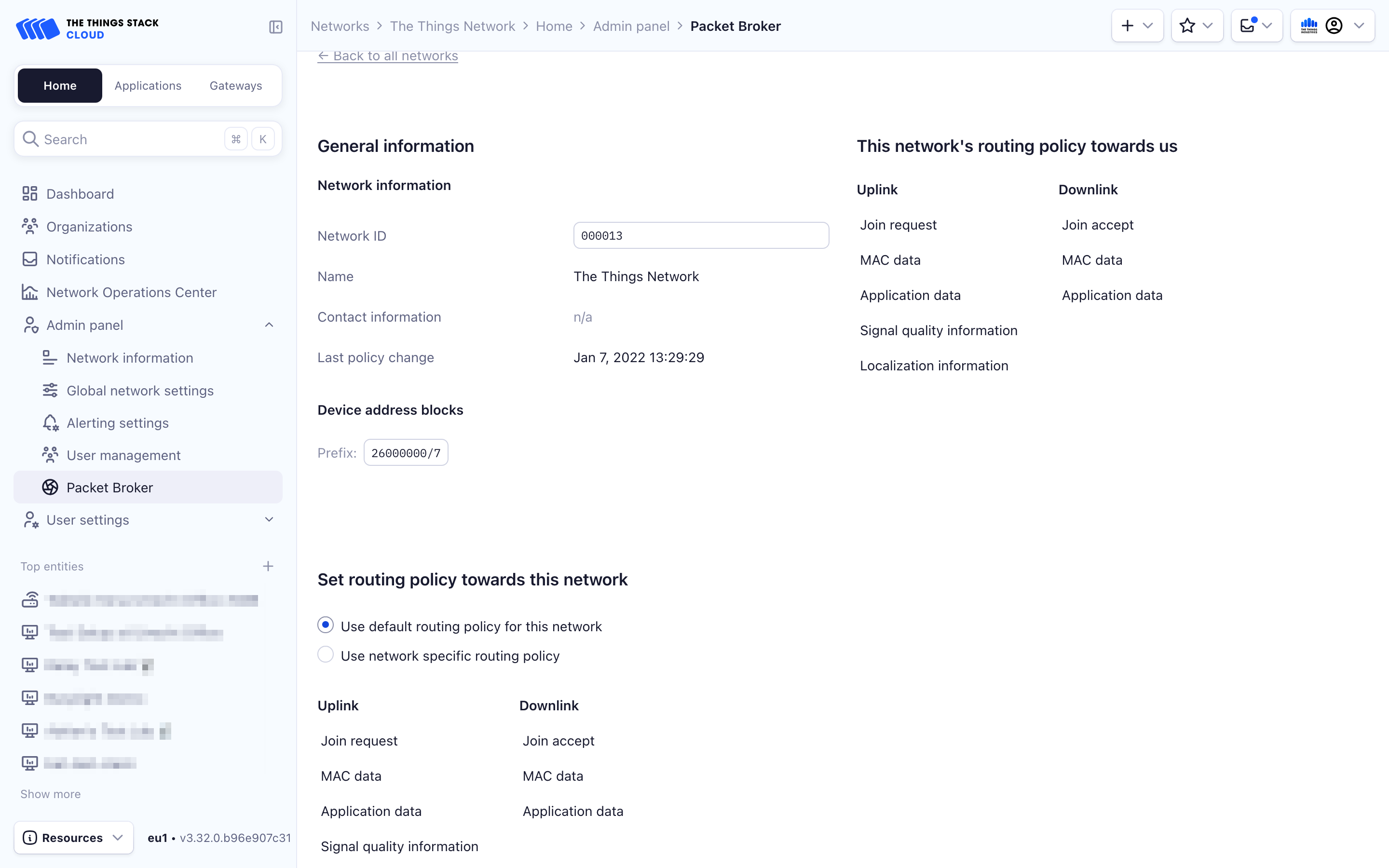

To configure a routing policy for a specific network, first select the network. Activate the Use network specific routing policy radio button.

Here, you may choose which uplink and downlink messages you would like to exchange with this network.

Click the Save routing policy button to store the routing policy.

List Forwarder Routing Policies

You can see which routing policies Forwarders set for your network as the Home Network. This allows you to see from which networks you receive traffic, which data is being routed, and what downlink capabilities you have with those Forwarders.

To list the routing policies set by Forwarders for your network:

ttn-lw-cli packetbroker forwarder policies list

[
  {
    "forwarder_id": {
      "net_id": 19,
      "tenant_id": "ttn"
    },
    "home_network_id": {
      "net_id": 19,
      "tenant_id": "my-company"
    },
    "updated_at": "2021-03-23T15:14:49.614025Z",
    "uplink": {
      "join_request": true,
      "mac_data": true,
      "application_data": true,
      "signal_quality": true,
      "localization": true
    },
    "downlink": {
      "join_accept": true,
      "mac_data": true,
      "application_data": true
    }
  }
]

Home Network Routing Policies

You can manage the routing policies between you as Forwarder and any Home Network available in Packet Broker. This allows you to configure what uplink traffic is routed where, and to which extent those Home Networks can use your gateways for downlink traffic.

Home Network routing policies take precedence over the default routing policy.

List Home Network Routing Policies

To list the routing policies for Home Networks:

ttn-lw-cli packetbroker home-network policies list

Get Home Network Routing Policy

To get the routing policy for a Home Network:

ttn-lw-cli packetbroker home-networks policies get <net-id> [<tenant-id>]

Replace <net-id> with your network’s NetID. The tenant-id is optional and represents the tenant within the NetID.

To view the routing policy configured between you (the Forwarder) and The Things Stack Sandbox (the Home Network):

ttn-lw-cli packetbroker home-networks policies get 000013 ttn

Set Home Network Routing Policy

To set the routing policy for a Home Network:

ttn-lw-cli packetbroker home-network policies set <net-id> [<tenant-id>] --all

To customize, see Flags below.

To enable forwarding of all packets between you (the Forwarder) and The Things Stack Sandbox (the Home Network):

ttn-lw-cli packetbroker home-network policy set 000013 ttn --all

Delete Home Network Routing Policy

To delete the routing policy for a Home Network:

ttn-lw-cli packetbroker home-networks policies delete <net-id> [<tenant-id>]

Replace <net-id> with your network’s NetID. The tenant-id is optional and represents the tenant within the NetID.

Flags

When setting a routing policy, you can specify a combination of the following flags:
